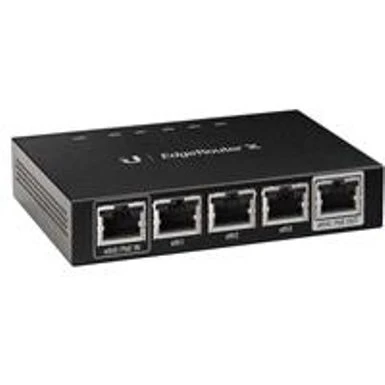

Ubiquiti Networks 5 Port EdgeRouter X

Ubiquiti Networks introduces the EdgeRouter X, part of the EdgeMAX platform. The EdgeRouter X combines carrier class reliability with excellent price to performance value in an ultra compact form factor.

@@ 5x Gigabit RJ45 ports
@@ Passive PoE passthrough option
@@ Power via 24V passive PoE or power adapter
@@ Ports configurable for line-rate, Layer-2 switching
@@ 130 kpps for 64-byte packets
@@ 1 Gbps for 1518-byte packets

Note:

Requires 24V passive PoE or a 12W minimum power adapter (not included ).

PoE Versatility
Two models of the EdgeRouter X are available. The standard model, the ER-X, can be powered by an external power adapter or 24V passive PoE input. A passive PoE passthrough option1 is available to support a single airMAX device.

Configuration Methods
Powered by a proprietary and intuitive graphical interface, EdgeOS, every EdgeRouter X can easily be configured for the routing, security and management features required to efficiently run your network. For advanced network professionals, an integrated CLI is available for quick and direct access using familiar commands.

Intuitive User Interface
The EdgeRouter X provides a graphical user interface designed for convenient setup and control. Accessed via a network port and web browser, the user -friendly interface provides intuitive management with a virtual view of the ports, displaying physical connectivity, speed and status. The Dashboard displays detailed statistics: IP information, MTU, transmit and receive speeds and status for each physical and virtual interface.

Powerful Features
EdgeOS is a sophisticated operating system with robust features, including:

@@ VLAN interfaces for network segmentation
@@ Static routes and support of routing protocols: OSPF, RIP and BGP
@@ Firewall policies and NAT rules
@@ DHCP services
@@ Quality of Service (QoS)
@@ Network administration and monitoring tools
@@ Administrator and operator accounts
@@ Comprehensive IPv6 support

Configuration by CLI
The CLI provides quick and flexible configuration by command line and features the following:

@@ For power users, configuration and monitoring of all advanced features
@@ Direct access to standard Linux tools and shell commands
@@ CLI access through SSH, Telnet and the graphical user interface
